This page is the architecture reference for the Rubik’s Cube Solver demo: every top-level composite, how they depend on one another, the interfaces shared between them, the internal MVIC decomposition of each function, and how the HMI is assembled from all of it. It complements the demo’s entry in the Examples Guide, which covers what the demo does and how to use it - this page is about how it is built.

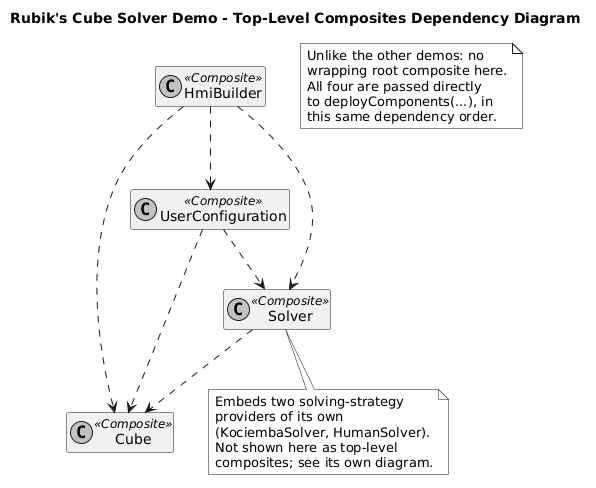

Top-Level Composites

Four top-level composites: Cube, Solver, UserConfiguration and HmiBuilder. Unlike Neural Network Trainer, Solar System Simulation and Ecosystem, none of them is wrapped in a single root composite. The launcher passes five classes directly to container.deployComponents(...), in this same dependency order: the HMI core, then CubeImpl, SolverImpl, UserConfigurationImpl and HmiBuilderImpl. Covalent’s deployment model needs nothing extra to support this - a composite only ever depends on another composite’s public interfaces, never on being listed inside some larger wrapping class, so handing the container several composites at once works exactly like handing it one. This is the point the demo is built to make: a “root composite” is a convention every other demo in this project happens to follow, not a requirement deployComponents(...) imposes.

KociembaSolverImpl and HumanSolverImpl are not top-level composites: both are plain @Implementation fields composed inside SolverImpl, alongside the Solver function’s own MVIC quartet - see Solver below.

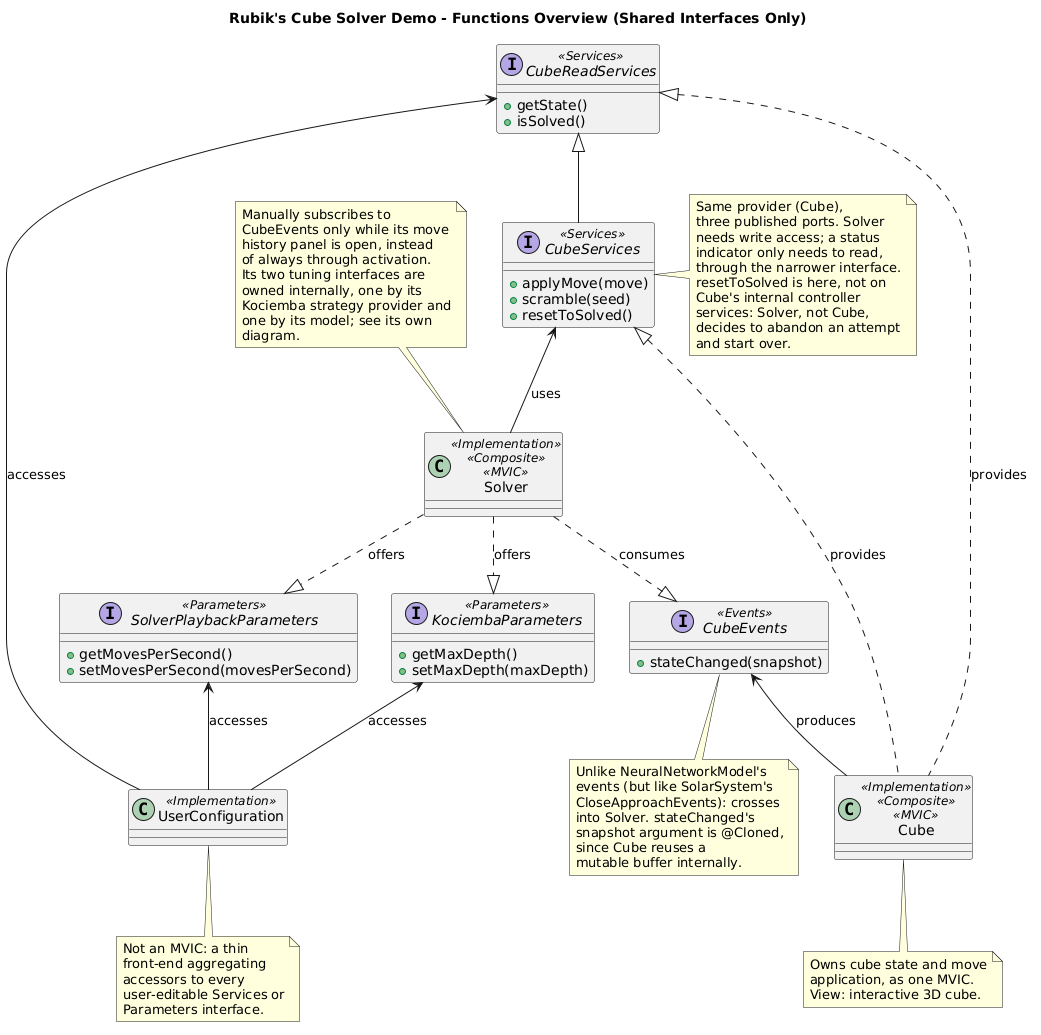

Functions Overview

Cube exposes two public interfaces instead of one: CubeServices extends CubeReadServices. CubeReadServices carries the two read-only operations (getState(), isSolved()); CubeServices adds the three that mutate the cube (applyMove(Move), scramble(long), resetToSolved()). This is extending services: UserConfiguration is written against CubeReadServices alone, so it structurally cannot call applyMove, scramble or resetToSolved, while Solver is written against the wider CubeServices to play out a found solution. Both interfaces are provided by the same class, CubeControllerImpl - the split is about which callers can reach which operations, not about which component implements them.

Solver uses CubeServices to apply moves, and consumes CubeEvents to trace them (see Cube below for how). It offers two @Parameters interfaces of its own, KociembaParameters (owned internally by the Kociemba strategy provider) and SolverPlaybackParameters (owned by SolverModel, the speed at which a found solution is played onto the cube), both accessed externally by UserConfiguration, alongside CubeReadServices for the cube’s solved status.

Per-Function Decomposition

Each function below is shown as its own MVIC, with full interface method signatures, plus the public interfaces it exposes to or consumes from the rest of the demo.

Cube

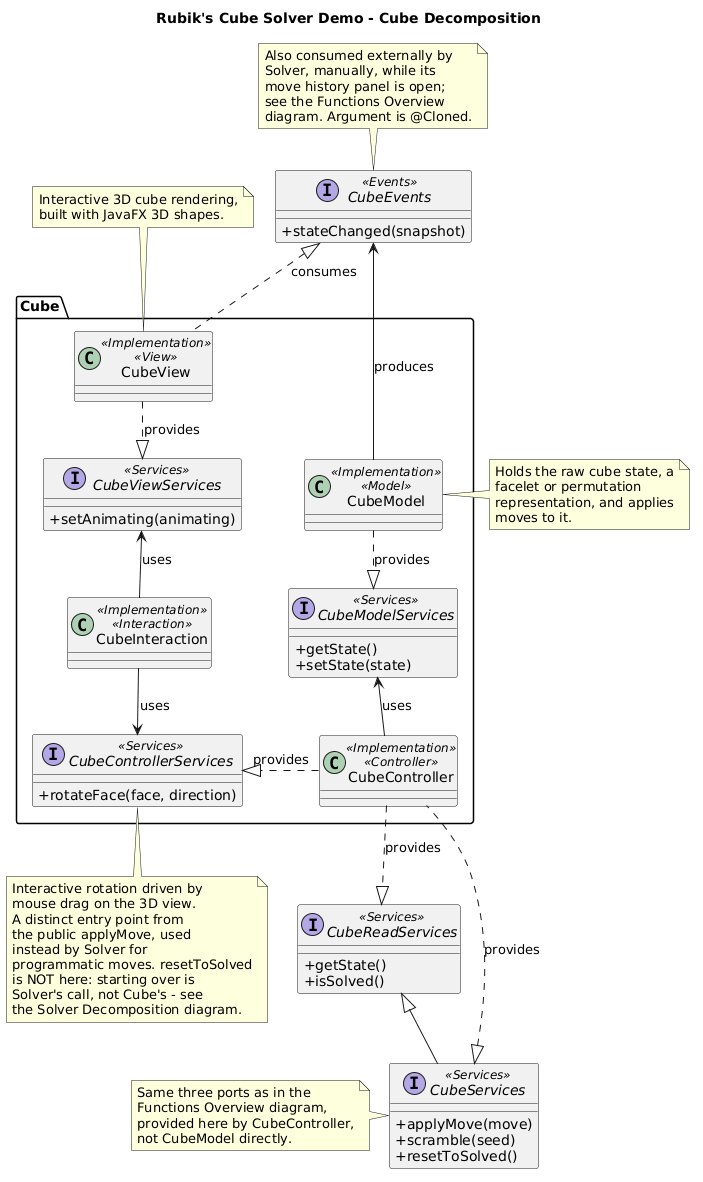

Cube Decomposition

Owns the cube’s state and every operation that changes it, as one MVIC. CubeControllerServices (rotateFace(face, direction)) is this function’s own internal, interactive entry point, used only by CubeInteraction in response to a click; the external CubeServices/CubeReadServices pair from Functions Overview is what Solver and UserConfiguration use instead. Both entry points end up at the same implementation class, CubeControllerImpl, where rotateFace delegates to applyMove. A move is applied to a clone of the current state, which is then pushed back, so the state the Model holds is never mutated in place:

public void applyMove(final Move move) {
    CubeState next = this.useCubeModelServices.getState().clone();
    next.applyMove(move);
    this.useCubeModelServices.setState(next);
}

scramble(seed) deliberately starts from a fresh new CubeState() rather than the current one, with 25 moves drawn from a Random seeded by the caller - so repeated Scramble clicks don’t compound into an ever-more-scrambled cube. resetToSolved() reuses that same new CubeState() as the single source of truth for what “solved” means.

CubeModelServices.setState(...) both replaces the stored state and fires CubeEvents.stateChanged(@Cloned CubeState snapshot). The @Cloned argument matters here: CubeState is mutable and the instance delivered is the one the Model holds (it is also what getState() returns), so without cloning, every subscriber would hold a reference to that same object and could alter the Model’s state by changing it. With @Cloned, each subscriber receives its own copy.

CubeEvents declares its own @EventsSubscribe interface, CubeEventsSubscribe, implemented by CubeModelImpl for event subscription delegation with a real catch-up push, not an empty body:

public void subscribe(final CubeEvents subscriber) {
    subscriber.stateChanged(this.state);
}

CubeEvents crosses the Cube/Solver function boundary, and has two real subscribers, each wired differently. CubeView implements CubeEvents directly with no @UsedEventsSubscribe field of its own, so Covalent auto-subscribes it at activation and its first redraw comes from that same catch-up push. SolverInteraction, by contrast, subscribes manually, only while its move history panel is open, through an explicit @UsedEventsSubscribe field typed to CubeEvents.CubeEventsSubscribe itself - not through GenericSubscribe: Covalent only allows GenericSubscribe for an events interface that declares no subscribe interface of its own, and CubeEvents already declares one (CubeEventsSubscribe, needed for CubeModelImpl’s delegation above), so manual subscription here goes through that same specific interface instead. Declaring the field at all is also what keeps SolverInteraction from being auto-subscribed at startup the way CubeView is - a subscriber with no @UsedEventsSubscribe field is auto-subscribed, one with a field is not, whichever subscribe interface that field names.

Solver

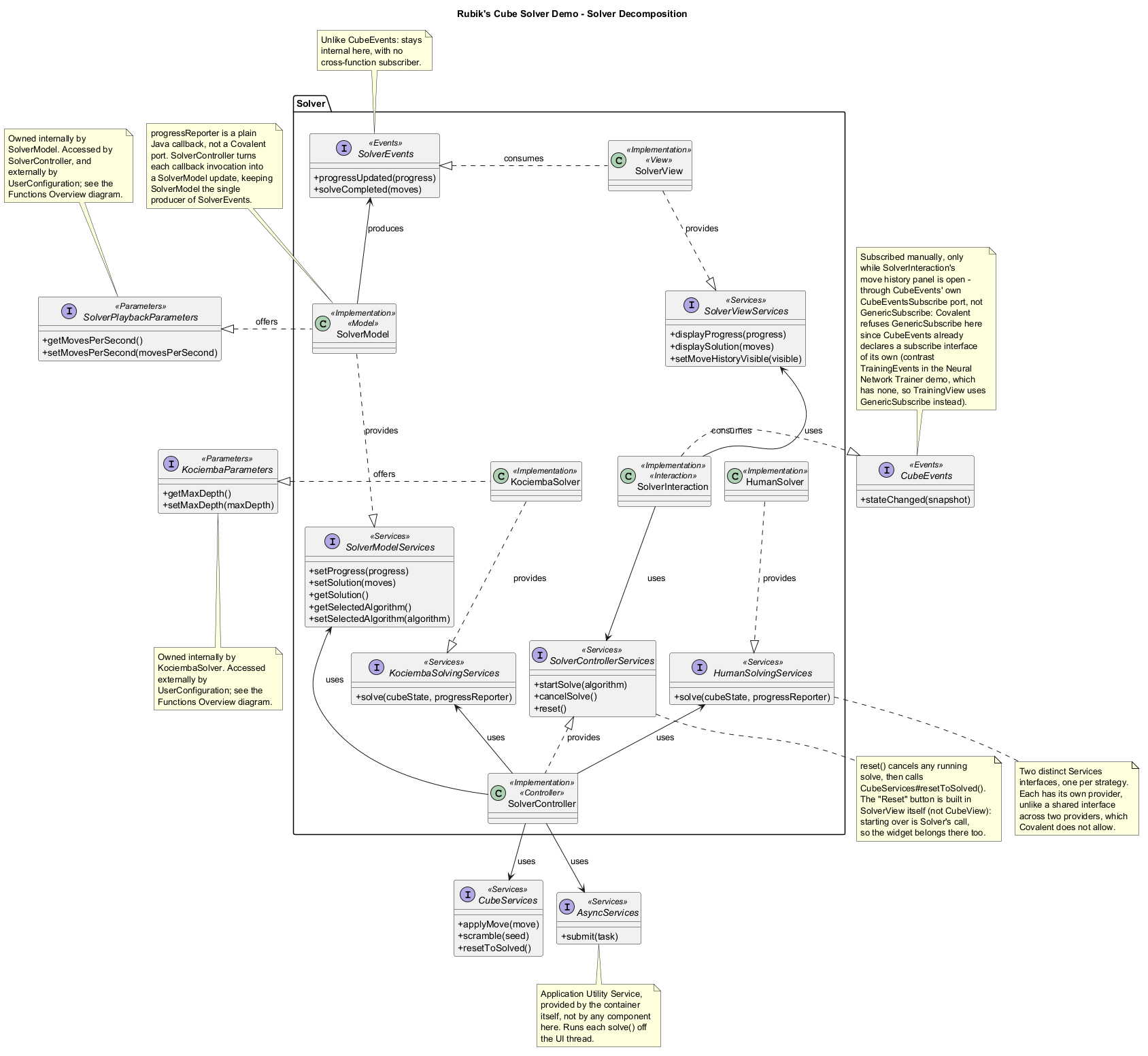

Solver Decomposition

Coordinates two independent solving strategies, KociembaSolver and HumanSolver, each composed inside SolverImpl as a plain @Implementation alongside the function’s own MVIC quartet. Each strategy provides its own Services interface (KociembaSolvingServices, HumanSolvingServices) rather than the two sharing one: Covalent does not allow two different component types to provide the same @Services interface, so a shared “solving services” contract would only let the first of the two actually provide it. SolverController is the single consumer of both:

private Move[] solveWith(final SolvingAlgorithm algorithm, final CubeState cubeState,
        final ProgressReporter progressReporter) {
    return switch (algorithm) {
        case KOCIEMBA -> this.useKociembaSolvingServices.solve(cubeState, progressReporter);
        case HUMAN -> this.useHumanSolvingServices.solve(cubeState, progressReporter);
    };
}

a fan-out of two providers converging on one consumer, picking which one to call rather than reacting to events or filters.

Each solve, search then playback, runs off the UI thread through AsyncServices, the container’s own Application Utility Service, on a dedicated queue key rather than the general pool:

this.useAsyncServices.submit(SOLVE_QUEUE_KEY, () -> {
            Move[] moves = this.solveWith(algorithm, cubeState, progressReporter);
            this.playSolution(moves, cubeState);
            return null;
        })
        .exceptionally(failure -> {
            this.reportSolveFailure(failure);
            this.solving.set(false);
            return null;
        });

The dedicated key is what makes cancellation meaningful: cancelSolve() calls AsyncServices.releaseQueue(SOLVE_QUEUE_KEY), which discards a not-yet-finished task on that key outright, interrupting a search in progress. SolverController tells a cancelled solve (CancellationException) apart from one that honestly exhausted its search budget (SolveSearchExhaustedException, raised by either strategy when its time budget, node budget or maximum depth is reached without finding a solution) apart from an actual bug, reporting each distinctly.

Progress flows back through ProgressReporter, a plain Java functional interface rather than a Covalent events contract: since both strategies would need to produce the same events interface, and Covalent does not allow that either, SolverController instead hands each strategy its own lambda, built fresh per solve, that forwards every callback straight into SolverModelServices.setProgress(...). This keeps SolverModel the one and only producer of SolverEvents (progressUpdated, solveCompleted), with neither strategy ever touching an events port directly.

The Kociemba strategy runs the classic two-phase search - reach the G1 subgroup, then solve within it - on a cube described by its small cubes, guided by distance tables built once, when the strategy first runs (well under a second), by a breadth-first search over small coordinates of the cube. It solves any cube, usually in 20 to 25 moves and in a few milliseconds, and replays its answer on a copy of the cube to check it. Its phase-2 depth cap is offered through KociembaParameters. The Human strategy follows the beginner layer-by-layer method in seven steps (first-layer cross, first-layer corners, middle-layer edges, last-layer cross, last-layer edges, last-layer corner positions and corner orientations), each one a short search over single turns or textbook algorithms for the next piece to place, without tunable parameters. Both strategies apply every move they consider through the same CubeState.applyMove(...) the rest of the demo already uses, never a second, hand-duplicated move engine, and every move a solve returns was genuinely applied along the way to reach the state it claims - a returned solution is always real, whatever the search’s own guidance was like getting there.

Unlike CubeEvents, SolverEvents stays entirely internal to the Solver function: SolverView consumes it directly, auto-subscribed simply by implementing the interface, and SolverModelImpl implements no subscription delegation for it, since a solve is short-lived and user-triggered rather than persistent state a late subscriber would need catching up on.

UserConfiguration is a thin, cross-cutting composite with no domain state of its own - a View/Interaction pair, no Model or Controller - that gathers KociembaParameters, SolverPlaybackParameters and CubeReadServices behind one panel. Its solved-status indicator is a one-shot read of CubeReadServices.isSolved() at activation rather than a live subscription to CubeEvents, so it shows the status the cube had when the panel activated and does not follow later moves the way CubeView does.

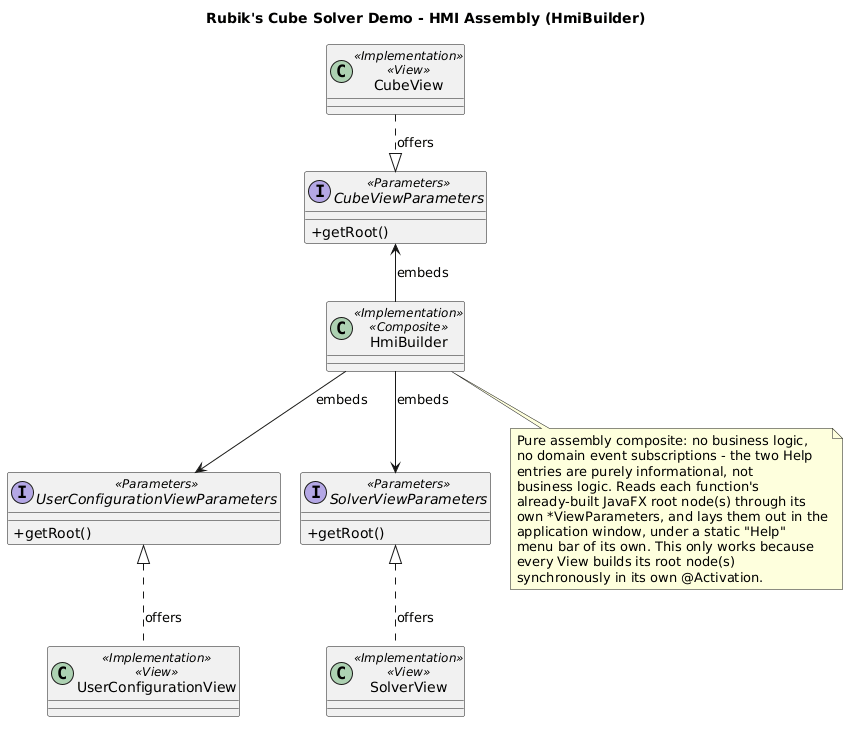

HMI Assembly

HmiBuilder reads three *ViewParameters interfaces - Cube, Solver and UserConfiguration, each a simple getRoot() - and lays out the cube view centered, the solver view to its right, and the configuration panel to its left. As in the other demos, this composite is pure assembly - no business logic, no domain event subscriptions - and only works because every View builds its root node synchronously in its own @Activation, so every root already exists by the time HmiBuilder activates and reads these parameters.

HmiBuilder also wires one piece of code of its own, beyond assembly: a static “Help” menu, with an “About Rubik’s Cube Solver” entry summarizing what the demo does and which Covalent mechanisms it illustrates, and a “Using Rubik’s Cube Solver” entry describing its controls - exactly as in the other three demos (see Neural Network Trainer - Architecture). This demo has no “View” menu of its own - that addition is specific to Solar System Simulation’s dark/light theme switch.
