This page is the architecture reference for the Ecosystem demo: every top-level composite, how they depend on one another, the interfaces shared between them, the internal MVIC decomposition of each function, and how the HMI is assembled from all of it. It complements the demo’s entry in the Examples Guide, which covers what the demo does and how to use it - this page is about how it is built.

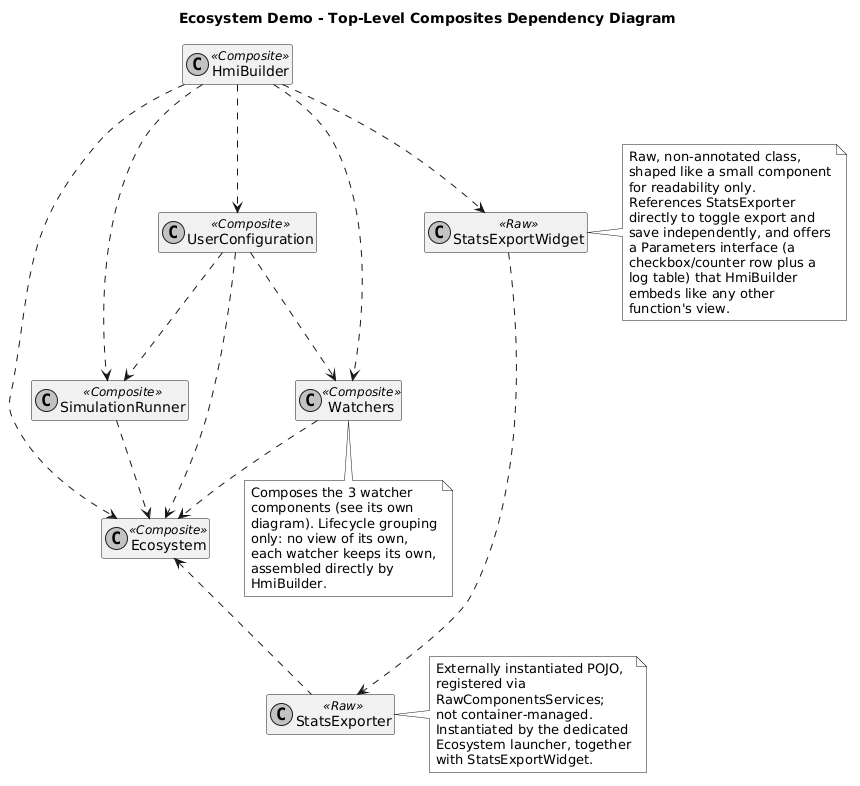

Top-Level Composites

Five composites: Ecosystem, SimulationRunner, Watchers, UserConfiguration and HmiBuilder. These five are each a function’s own composite, at the top of its own MVIC - not the application’s root; the actual root composite is EcosystemDemoImpl, the only class passed to container.deployComponents(...), with every field activated in declaration order: the HMI core first, then Ecosystem (owns the species state and the simulation step), SimulationRunner (paces it), Watchers, UserConfiguration, and HmiBuilder last, which reads every other function’s already-built view.

Watchers is a plain @Implementation with no Services, Parameters or Events of its own - three more @Implementation fields (RoleWatcher, WatchlistWatcher, CrossWatcher) and nothing else. It exists purely to group their lifecycle under one parent, so EcosystemDemoImpl activates and passivates all three together without listing each one itself. Composition needs nothing extra to support this: a composite can contain composites just as readily as it contains a Model or a View, so nesting one more level costs nothing beyond declaring one more field - which is exactly why “top-level composite” rather than “root component” is the right name for Ecosystem, SimulationRunner, Watchers, UserConfiguration and HmiBuilder: RoleWatcher, WatchlistWatcher and CrossWatcher are composites too, just not top-level ones.

A StatsExporter/StatsExportWidget raw component pair sits alongside these five, wired by the demo’s own launcher rather than deployComponents(...) - see Raw Component: Stats Export below.

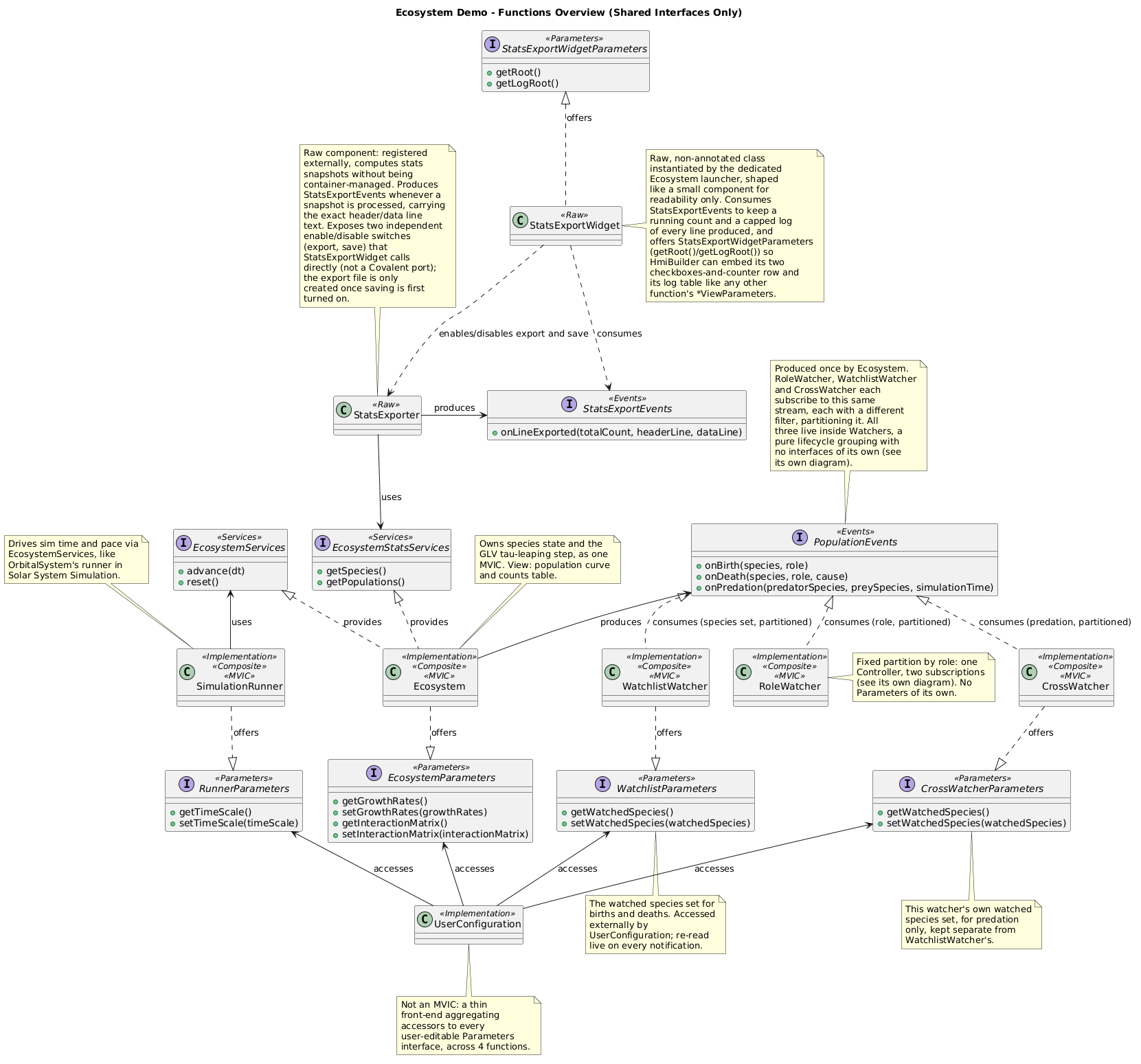

Functions Overview

One interface does almost all of the cross-function work: PopulationEvents, produced once by Ecosystem and consumed independently by all three components inside Watchers, each with its own filter - the same broadcast stream partitioned three different ways, without any watcher sorting events itself in its own callback. EcosystemServices (called every tick by SimulationRunner) and the four *Parameters interfaces UserConfiguration accesses round out the rest; RoleWatcher is the one function with no Parameters of its own, since both of its filters are fixed rather than user-editable.

Ecosystem’s Model also exposes EcosystemStatsServices (getSpecies(), getPopulations()) as a second, read-only interface alongside the state-mutating EcosystemModelServices the Controller uses - deliberately public and separate, the shape the raw StatsExporter component (see Raw Component: Stats Export below) consumes to read live population data without ever touching the simulation itself.

Per-Function Decomposition

Each function below is shown as its own MVIC, with full interface method signatures, plus the public interfaces it exposes to or consumes from the rest of the demo.

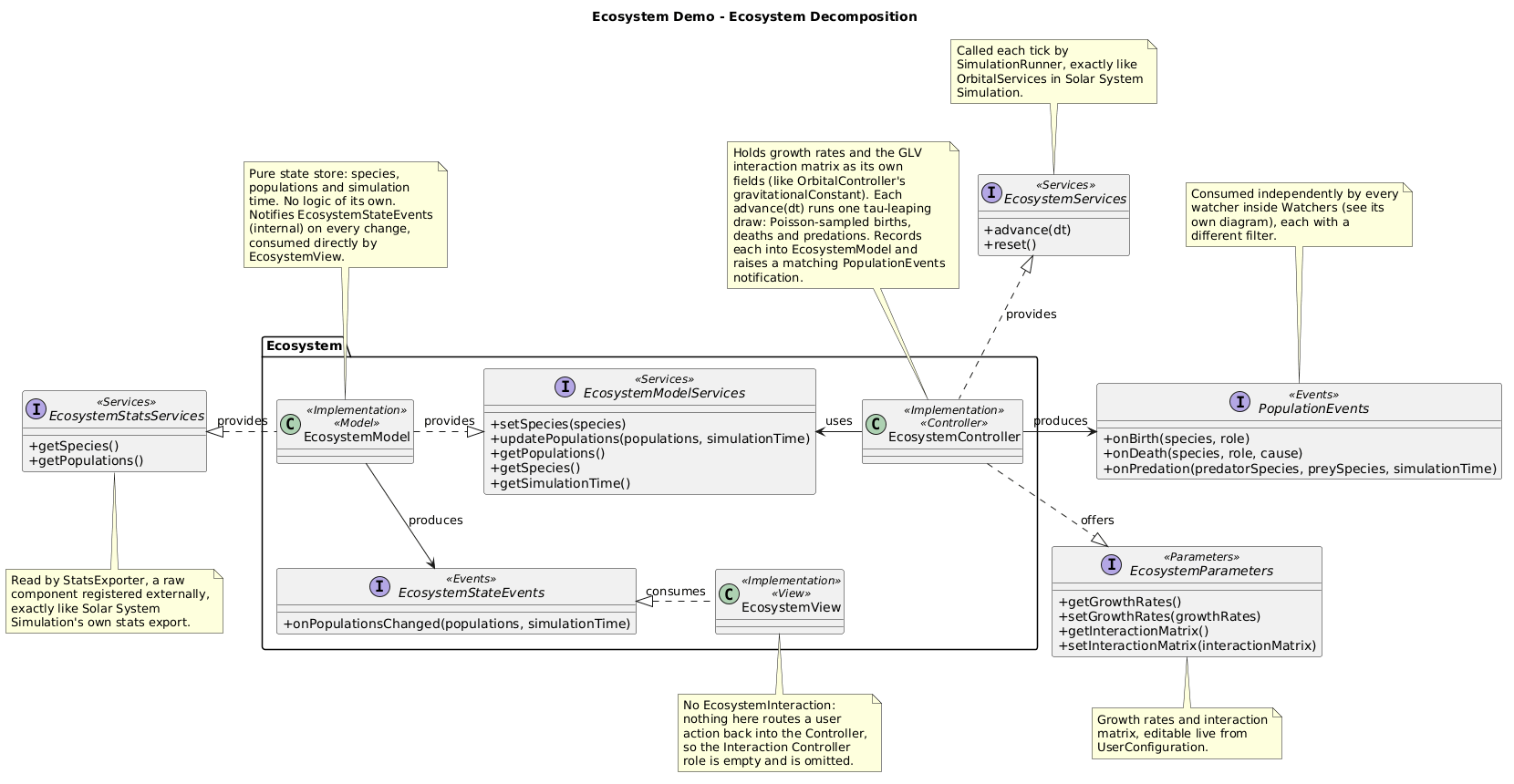

Ecosystem

Owns species populations and the simulation step, as one MVIC - Model and View only, no Interaction Controller, since nothing here routes a user action back into the Controller. The Controller holds growth rates and a generalized Lotka-Volterra interaction matrix as its own fields, and runs one stochastic tau-leaping draw per advance(dt): a Poisson-sampled birth or death for each species, each recorded into the Model and raised as a matching PopulationEvents notification.

double lambda = Math.abs(netRate) * n * dt;
int count = poisson(lambda);
if (netRate >= 0.0) {
    nextPopulations.put(name, n + count);
    populationEvents.onBirth(name, s.role());
} else {
    double after = Math.max(0.0, n - count);
    nextPopulations.put(name, after);
    populationEvents.onDeath(name, s.role(), cause);
    firePredationIfApplicable(s, row);
}

Every non-Grass species starts with a negative baseline growth rate: a Prey or Predator declines and eventually starves on its own, and only turns net-positive through its interaction-matrix coefficient with whatever it eats - without this, a species would keep growing even after its own food source goes extinct.

Filtered subscription requires PopulationEvents to declare a subscribe interface, PopulationEventsSubscribe, which each watcher consumes. The container provides it: EcosystemControllerImpl does not implement it, as it has no need to be told about its subscribers. Nothing needs catching up there: Watchers’ three components all activate before Ecosystem ever produces a first event.

Between the Model and the View, EcosystemStateEvents is the opposite case. The View subscribes manually, through EcosystemStateEventsSubscribe, so that its “Pause display” checkbox can stop and resume its reception while the simulation keeps running. The subscribe call carries two custom arguments, neither a filter nor subscribe parameters: the simulation time of the last state the View has, and the “History depth” it wants back (entered in the field next to the checkbox):

this.useStateEventsSubscribe.subscribe(this, this.subscribedSince, this.subscribedDepth);

EcosystemModelImpl implements the subscribe interface, so it is told about each subscription (event subscription delegation). It keeps a bounded history of the states it notified, and replays to the new subscriber those after the given time, at most the latest historyDepth of them: a long enough depth completes the curve at once, a short one leaves a visible jump across the older missed part. The arguments identify the subscription, so unsubscribe repeats them (see Custom Event Subscription). The pause involves no action: it only concerns this View, which handles it itself.

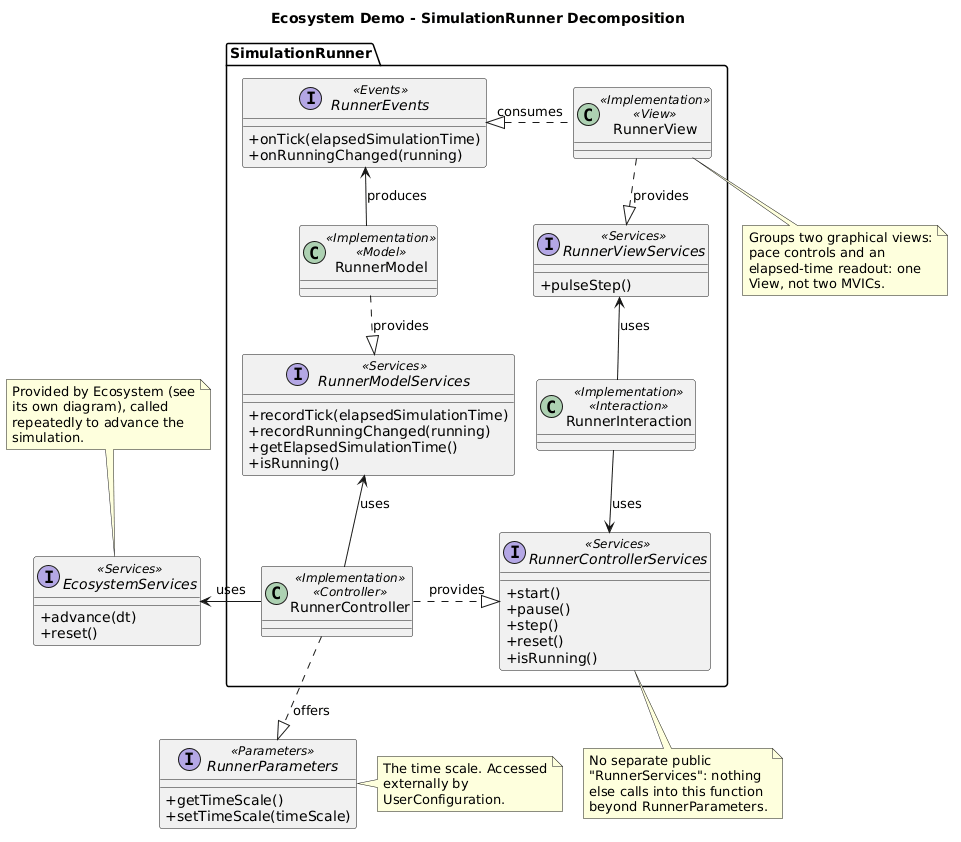

SimulationRunner

Paces the simulation independently of Ecosystem’s own logic, exactly as SimulationRunner does in Solar System Simulation: its Controller drives ticks from its own dedicated ScheduledExecutorService (a fixed 50 ms pause between ticks, about 20 ticks per second), the same scheduled-executor shape TrainingControllerImpl uses in the neural network demo. Each tick scales a fixed simulation-time step by the live, user-editable RunnerParameters.getTimeScale() and calls EcosystemServices.advance(dt). The View groups two graphical views - run controls and an elapsed-time readout - as one View, not two MVICs; a manual “Step” additionally flashes the readout through RunnerViewServices.pulseStep(), visual feedback a continuously-running tick doesn’t need.

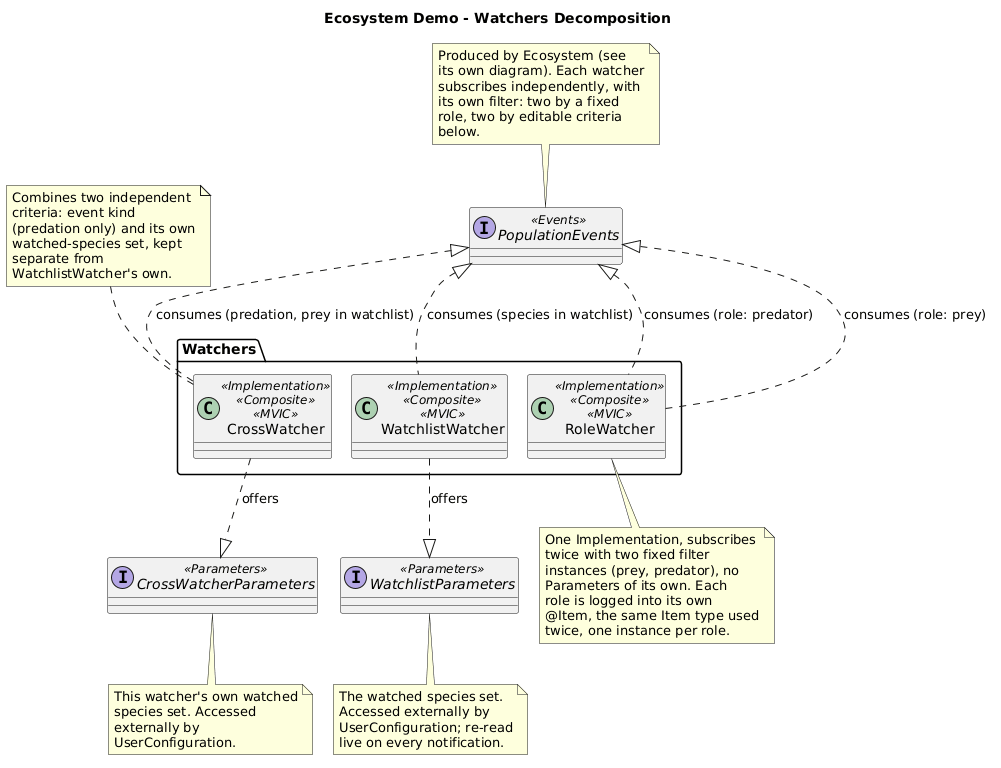

Watchers

The lifecycle-only composite from Top-Level Composites above, shown here with its three children’s boundary interfaces. Each one subscribes to the same PopulationEvents stream produced by Ecosystem, with a filter that picks out a disjoint (or, for CrossWatcher, cross-cutting) slice of it - the three together are what turn one broadcast into three differently-scoped views without Ecosystem knowing any of them exist. HmiBuilder bypasses this composite entirely: each child’s View is embedded directly (see HMI Assembly below), so grouping them here is purely a lifecycle convenience, never a routing concern.

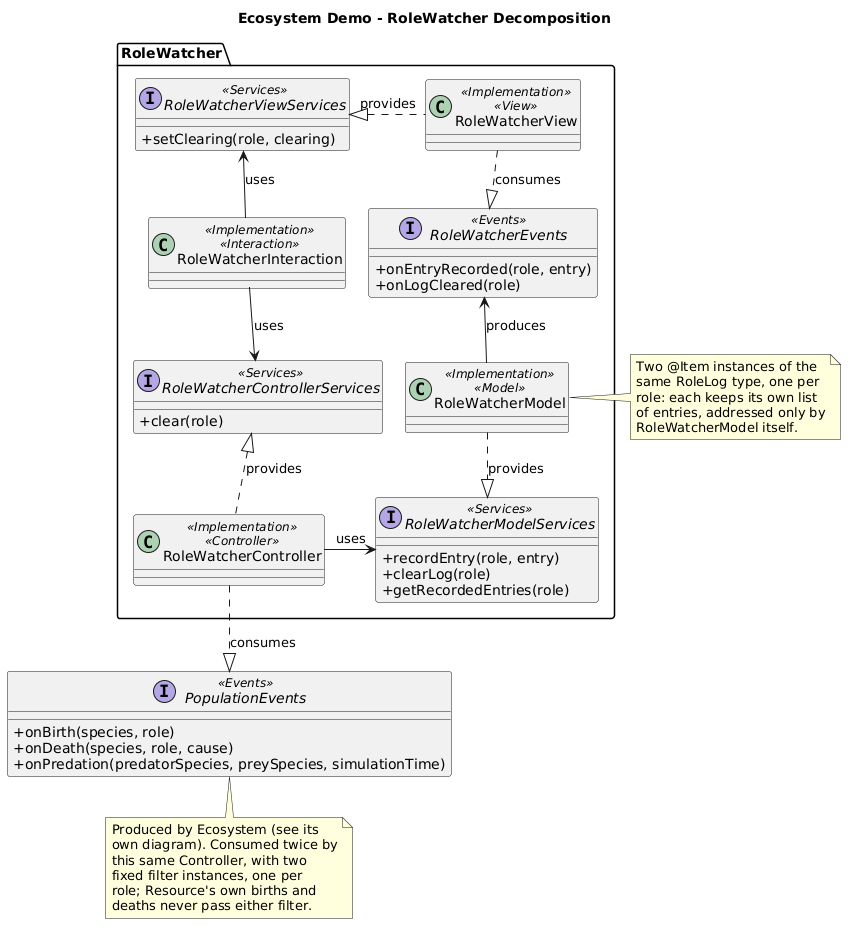

RoleWatcher

One Controller, two independent subscriptions to the same PopulationEvents, each combining a filter with subscribing an object instead of the consumer component:

@Activation
public void subscribeBothRoles() {
    populationEventsSubscribe.subscribe(preyObserver, new RoleFilter(Role.PREY));
    populationEventsSubscribe.subscribe(predatorObserver, new RoleFilter(Role.PREDATOR));
}

preyObserver and predatorObserver are two small delegate instances of a private inner class holding one fixed Role each, so the Controller’s own onBirth/onDeath never has to branch on which role a notification belongs to - each delegate already knows. The architecture diagram still shows one consumes edge: which Java object actually receives a given callback is an implementation detail beneath that abstraction. The Model mirrors this split with two @Item fields, preyLog and predatorLog - necessarily two distinct item types (PreyLogItem, PredatorLogItem) rather than one type used twice, since Covalent resolves an @Item field by its declared type and two fields of the same type on one @Implementation would collide.

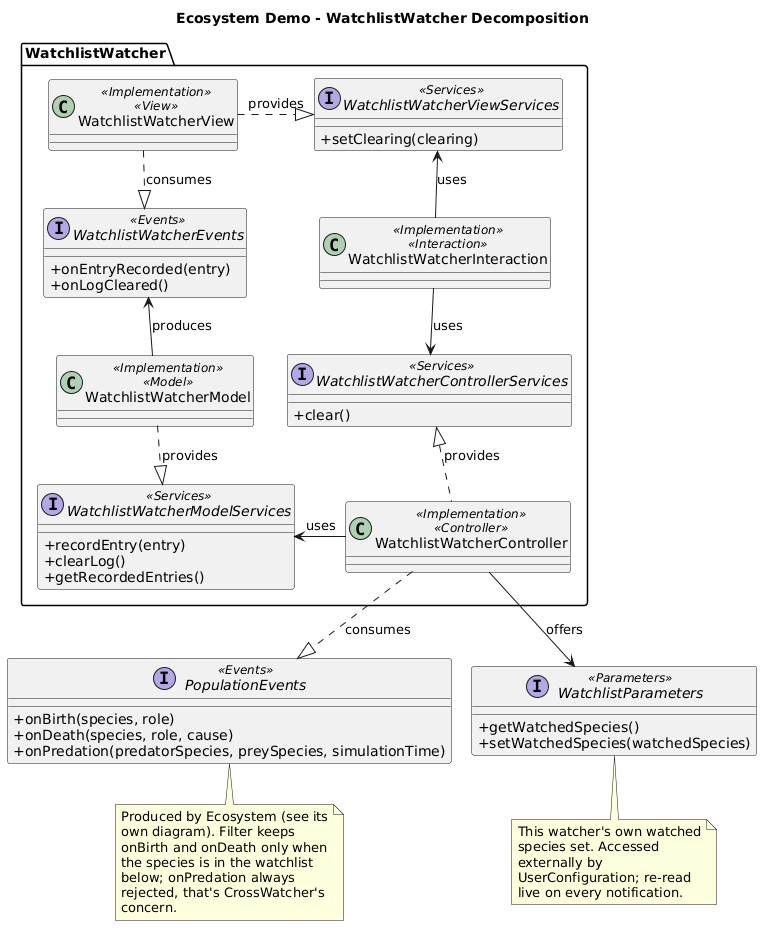

WatchlistWatcher

Subscribes itself directly, with a filter that reads this function’s own live WatchlistParameters on every notification - the same shape HazardAlertControllerImpl uses in Solar System Simulation, so editing the watched-species set from UserConfiguration changes what qualifies from the next notification on, with no re-subscription needed.

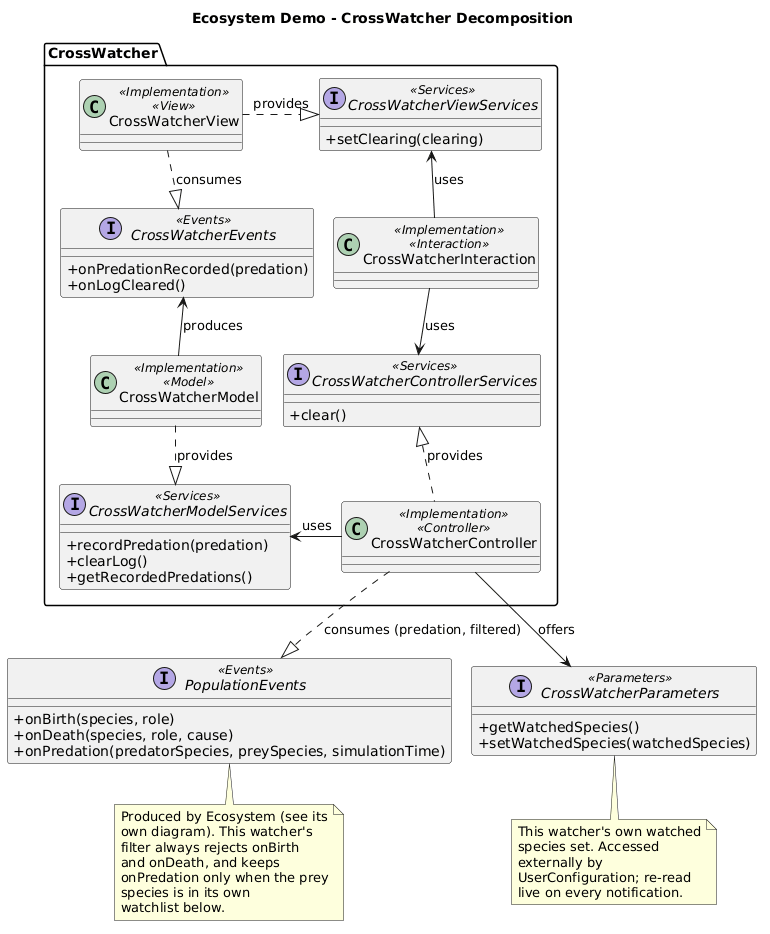

CrossWatcher

The one filter combining two independent criteria at once: event kind (onPredation only - births and deaths are always filtered out) and, within that, whether the prey species is in this function’s own watched set, kept deliberately separate from WatchlistWatcher’s own set of the same shape. Two filter methods returning an unconditional true is what expresses “not this watcher’s concern” for an entire event kind, as plainly as the third method’s real condition expresses it for the one kind this watcher does care about.

Raw Component: Stats Export

A raw component pair, StatsExporter and StatsExportWidget, mirrors the running population counts to a CSV file from entirely outside the managed component graph: neither class carries @Component or @Implementation, and neither is passed to deployComponents(...). Both are wired instead by EcosystemStatsExportDemoLauncher, this demo’s own DemoLauncher, which the shared multi-demo launcher uses for the Ecosystem row in place of the ordinary ManagedDemoLauncher every other demo uses.

StatsExporter uses EcosystemStatsServices from the outside, through two independent switches rather than one: setExportEnabled(boolean) turns computing one population snapshot a second - and logging it - on or off, and setSaveEnabled(boolean) separately turns persisting those same snapshots to a CSV file on or off:

private void tick() {
    if (!this.exportEnabled) {
        return;
    }
    List<Species> species = this.useEcosystemStatsServices.getSpecies();
    Map<String, Double> populations = this.useEcosystemStatsServices.getPopulations();

    boolean headerIsNew = this.headerText == null;
    if (headerIsNew) {
        this.headerText = species.stream().map(Species::name).collect(Collectors.joining(","));
    }
    String dataText = species.stream().map(s -> String.valueOf(populations.getOrDefault(s.name(), 0.0)))
            .collect(Collectors.joining(","));

    if (this.saveEnabled) {
        try {
            this.appendToFile(dataText);
        } catch (IOException e) {
            throw new UncheckedIOException(e);
        }
    }

    this.totalCount++;
    this.producedEvents.onLineExported(this.totalCount, headerIsNew ? this.headerText : null, dataText);
}

The export file itself is only ever created the first time saving turns on, never merely because export is enabled - a user who only watches the log never gets a file on disk they did not ask for. StatsExporter produces a raw StatsExportEvents.onLineExported(int totalCount, String headerLine, String dataLine) notification on every tick, carrying the exact header and data line text - headerLine is non-null only the first time it is produced - so a raw consumer can display a verbatim running log without reading the export file back off disk.

StatsExportWidget is the raw counterpart on the consuming side: it subscribes to StatsExportEvents to keep a running line count and a log of every header and data line produced, capped at 200 rows, holds a plain object reference to StatsExporter to flip its two switches directly (a raw component calling another raw component needs no Covalent port at all), and offers StatsExportWidgetParameters the same way every managed function’s own View offers its *ViewParameters - two accessors, getRoot() for the checkbox-and-counter row and getLogRoot() for the log table, so HmiBuilder embeds both through the ordinary @AccessedParameters + getXxxRoot() pattern without knowing its offeror is raw.

Wiring order is what makes this work, and EcosystemStatsExportDemoLauncher owns it entirely - LauncherApplication itself never imports anything Ecosystem-specific: the widget registers and offers its parameters first, so HmiBuilder resolves it like any other *ViewParameters once it activates; the managed EcosystemDemoImpl composite then deploys and starts; only once Ecosystem has activated and published EcosystemStatsServices does StatsExporter register and start pulling from it. A flat list of @Implementation classes handed to deployComponents(...) cannot express this sequencing, which is exactly why this demo needs its own DemoLauncher rather than the shared launcher’s ordinary one.

A Deliberate Dependency Cycle

The Supervisor’s dependency graph reports one cycle in this demo, and it is a real one:

• StatsExportWidget depends on StatsExporter: it consumes StatsExportEvents.
• StatsExporter depends on EcosystemDemo: it uses EcosystemStatsServices, provided by Ecosystem inside it.
• EcosystemDemo depends on StatsExportWidget: HmiBuilder, inside it, accesses StatsExportWidgetParameters.

Dependencies are analyzed between top-level components, and a composite stands for everything it contains. The two raw components cannot be composed into EcosystemDemo, so they sit beside it at the top level, and the dependencies running into and out of the composite close the loop. Taken component by component, the chain itself is linear: HmiBuilder → StatsExportWidget → StatsExporter → Ecosystem.

The demo still runs, because the launcher orders the wiring by hand (see above) and a used port waits on a surrogate until its provider appears.

The fix would be to turn both raw components into managed components and compose them into EcosystemDemo: there would then be a single top-level component, and its children would only form a linear chain. The cycle is kept on purpose, since this pair exists to show raw components in use, and it also shows what the cycle detection reports when components outside a composite depend on it in both directions.

HMI Assembly

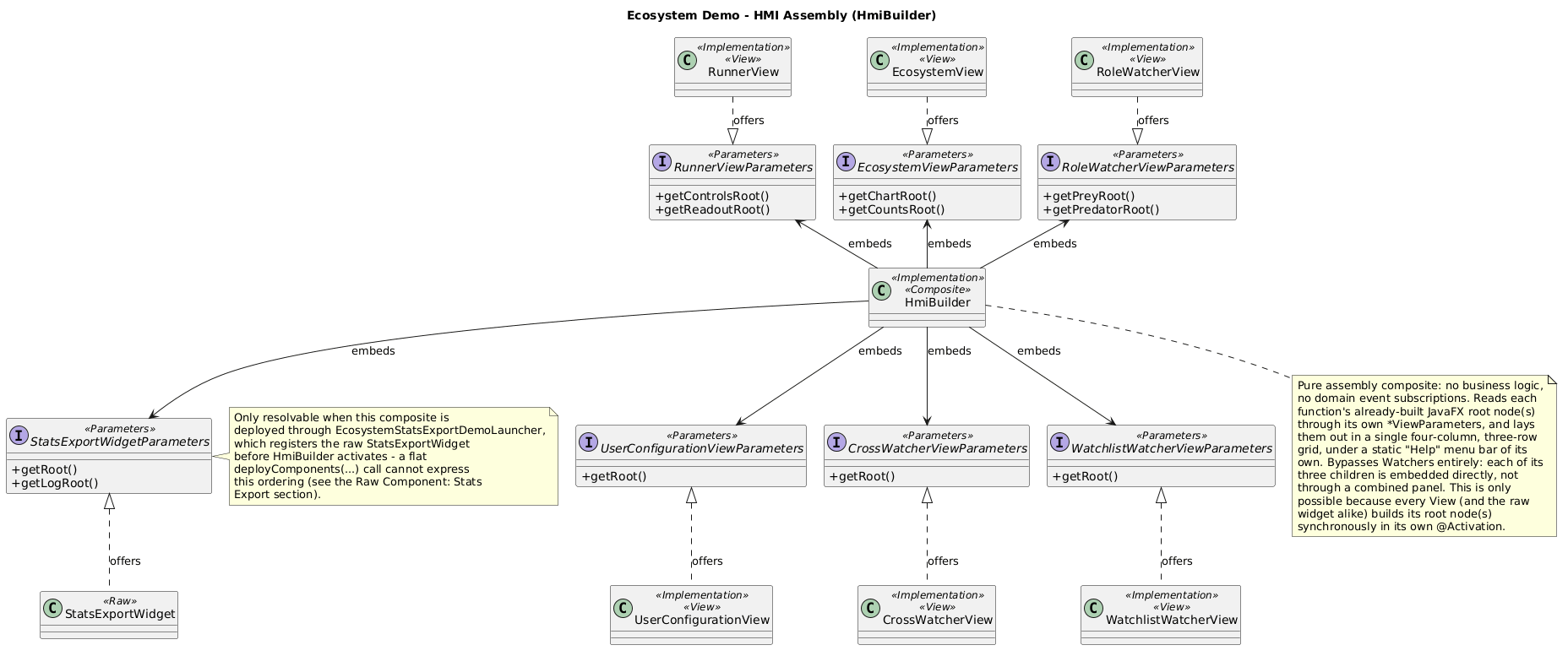

HmiBuilder reads seven *ViewParameters interfaces - Ecosystem, SimulationRunner, UserConfiguration, each of the three watchers individually, and the raw StatsExportWidgetParameters - laid out in a grid of three columns and one row. The left column holds the configuration and the runner controls. The center column holds the population chart, which takes the spare height, above the population counts table and the elapsed-time readout. The right column holds the watchlist table, the prey log, the predator log and the cross-watcher table, followed by the stats export widget’s two nodes stacked - getRoot() above getLogRoot(). EcosystemViewParameters offers two separate root nodes, getChartRoot() and getCountsRoot(), for the same reason RunnerViewParameters splits into getControlsRoot() and getReadoutRoot().

The grid’s own width is pinned at the lesser of 1920 pixels and the screen’s visual width, with the center column’s minimum width pinned at zero: left at its default, a column’s minimum is derived from its children’s natural size and could otherwise force the grid wider than the cap - the population chart is exactly the kind of child that would do this. With the center column free to shrink, each table still fills its own cell at full width through its own CONSTRAINED_RESIZE_POLICY, so nothing in this assembly ever renders wider than the window actually is.

As in the other demos, this composite is otherwise pure assembly - no business logic, no domain event subscriptions - and only works because every View (and the raw widget alike) builds its root node(s) synchronously, before HmiBuilder activates and reads these parameters; StatsExportWidgetParameters is only resolvable here because EcosystemStatsExportDemoLauncher registers the widget before the managed composite deploys, exactly as the previous section describes.

HmiBuilder also wires one piece of code of its own, beyond assembly: a static “Help” menu bar, with an “About Ecosystem Demo” entry summarizing what the demo does and which Covalent mechanisms it illustrates, and a “Using Ecosystem Demo” entry describing its controls - each opening a small, non-modal, read-only text window, wired directly rather than through ActionConsumerServices, exactly as in the other three demos (see Neural Network Trainer - Architecture). Ecosystem has no “View” menu of its own - that addition is specific to Solar System Simulation’s dark/light theme switch (see Solar System Simulation - Architecture).
