This page is the architecture reference for the Neural Network Trainer demo: every root component, how they depend on one another, the interfaces shared between them, the internal MVIC decomposition of each function, and how the HMI is assembled from all of it. It complements the demo’s entry in the Examples Guide, which covers what the demo does and how to use it - this page is about how it is built.

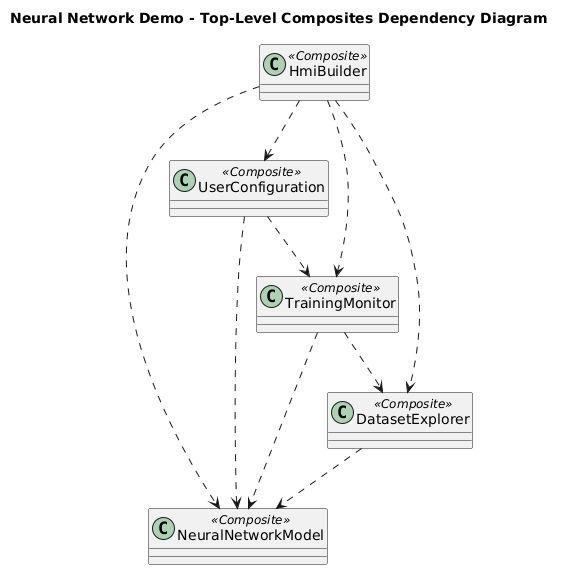

Top-Level Composites Dependency Diagram

Five composites: DatasetExplorer, NeuralNetworkModel, TrainingMonitor, UserConfiguration and HmiBuilder. NeuralNetworkModel is the only one every other function depends on - it owns the network’s layers and weights, and everything else either trains it, previews into it, or configures it. TrainingMonitor depends on both DatasetExplorer and NeuralNetworkModel to actually run training; UserConfiguration depends on NeuralNetworkModel and TrainingMonitor for the parameters it exposes; HmiBuilder depends on all four others - it is the composition root, built last, that assembles the whole window.

These five are each a function’s own composite, at the top of its own MVIC - not the application’s root. All five, plus HmiCore, are declared as @Implementation fields inside NeuralNetworkDemoImpl, the demo’s actual root composite and the only class the launcher passes to deployComponents(...). Composition can nest to any depth - each function’s own composite is itself made of its MVIC parts - and activation/passivation both proceed children-before-parent, in field-declaration order, at every level: the launcher never sequences a function by hand, it deploys one class and calls start()/stop().

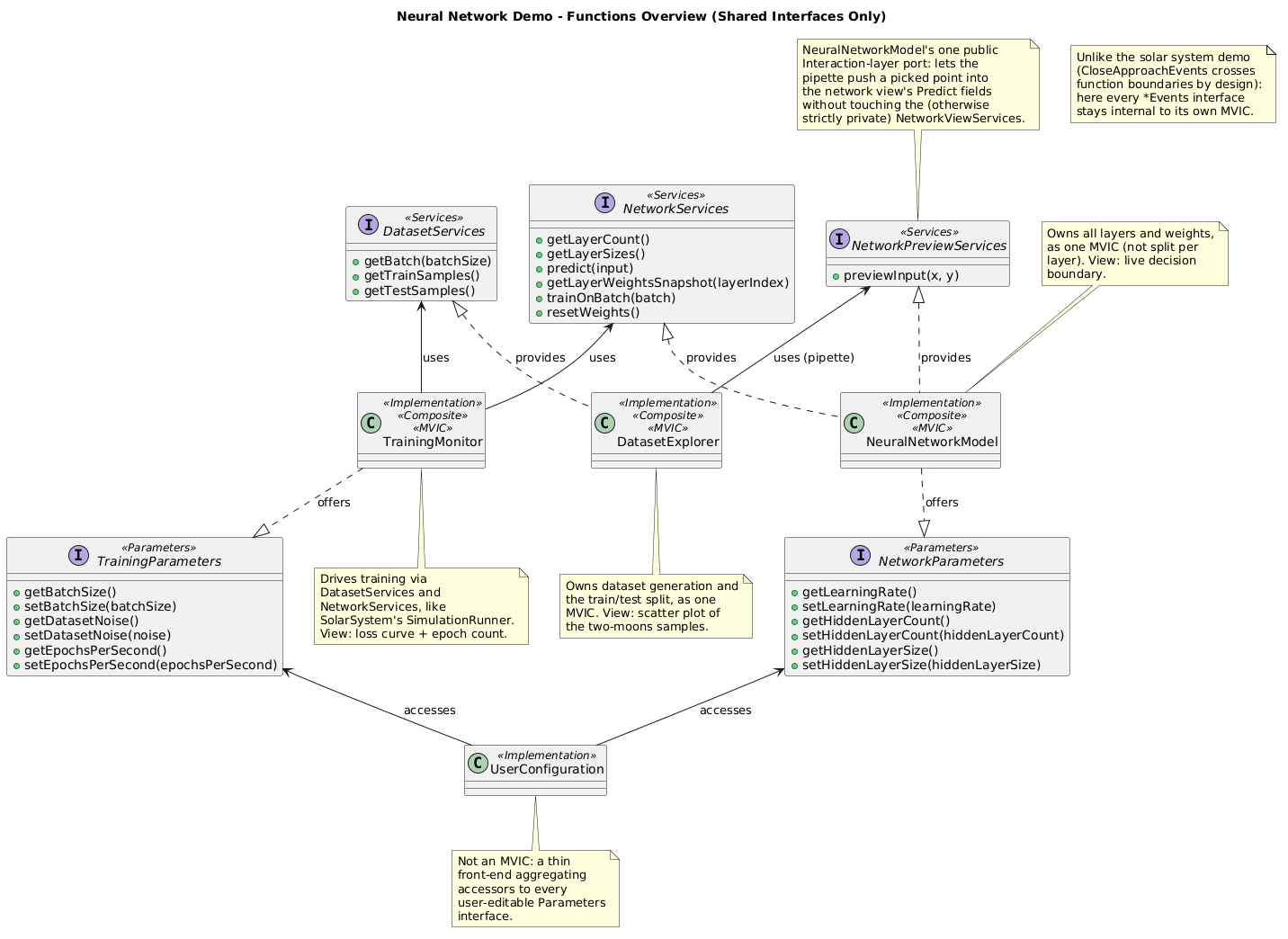

Functions Overview

The interfaces that actually cross function boundaries, in one place. Three of the five root composites are full MVICs (Model / Controller / Interaction Controller / View); UserConfiguration is deliberately not one - as in the solar system demo, it has no Model or Controller of its own, only an Interaction Controller that reaches directly into other functions’ Parameters interfaces.

Unlike the solar system demo, where CloseApproachEvents crosses function boundaries by design, every *Events interface here stays internal to its own MVIC. A Services interface (DatasetServices, NetworkServices) is what a function exposes to another one instead - plus one narrow exception, NetworkPreviewServices: NeuralNetworkModel’s single public Interaction-layer port, reached by DatasetExplorer’s own Interaction Controller so its canvas “pipette” can push a picked point into the network’s Predict fields, without touching anything else about NeuralNetworkModel.

Per-Function Decomposition

Each function below is shown as its own MVIC, with full interface method signatures, plus the public interfaces it exposes to or consumes from the rest of the demo.

DatasetExplorer

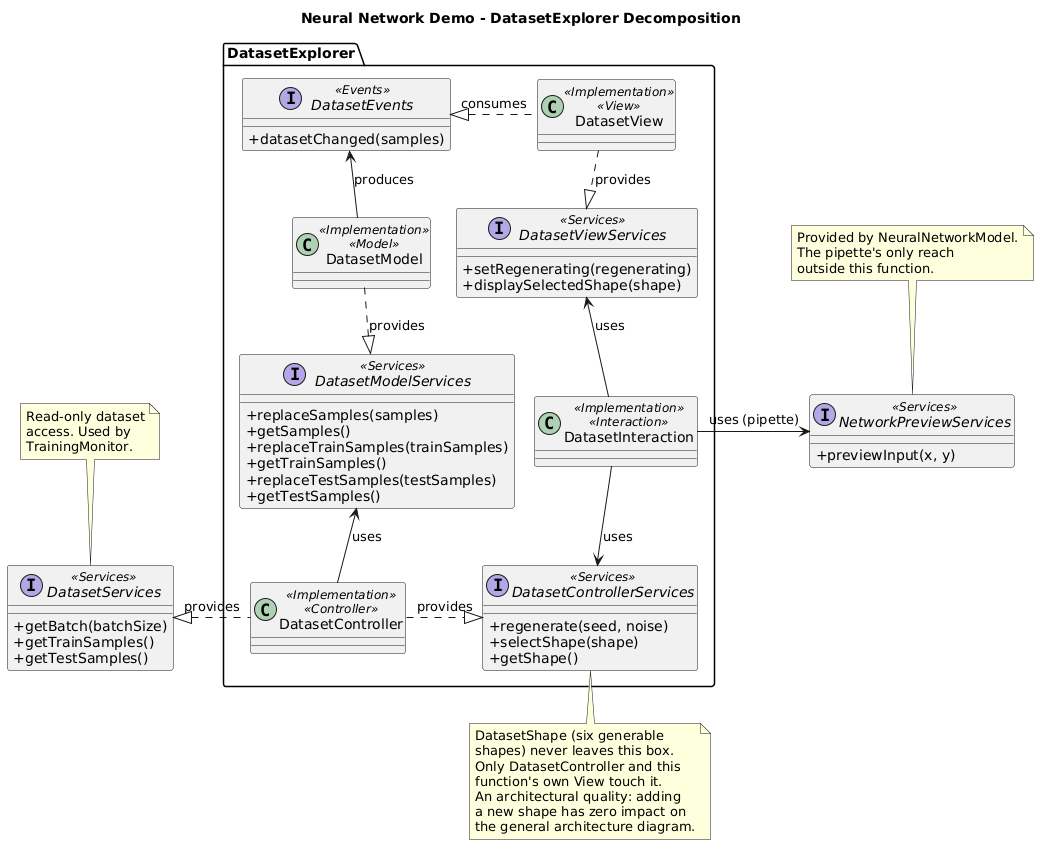

DatasetExplorer Decomposition

Owns dataset generation and the train/test split, as one MVIC - not one component per shape. Six interchangeable generator strategies (two moons, ring, cross, star, spiral, checkerboard) sit behind a single map lookup in the Controller: adding a shape means adding one generator and one map entry, nothing else in this function - the public/internal services split included - needs to know a new shape exists. DatasetControllerServices is this function’s own Interaction Controller’s view onto it; DatasetServices is the public, read-only export TrainingMonitor draws each mini-batch from.

NeuralNetworkModel

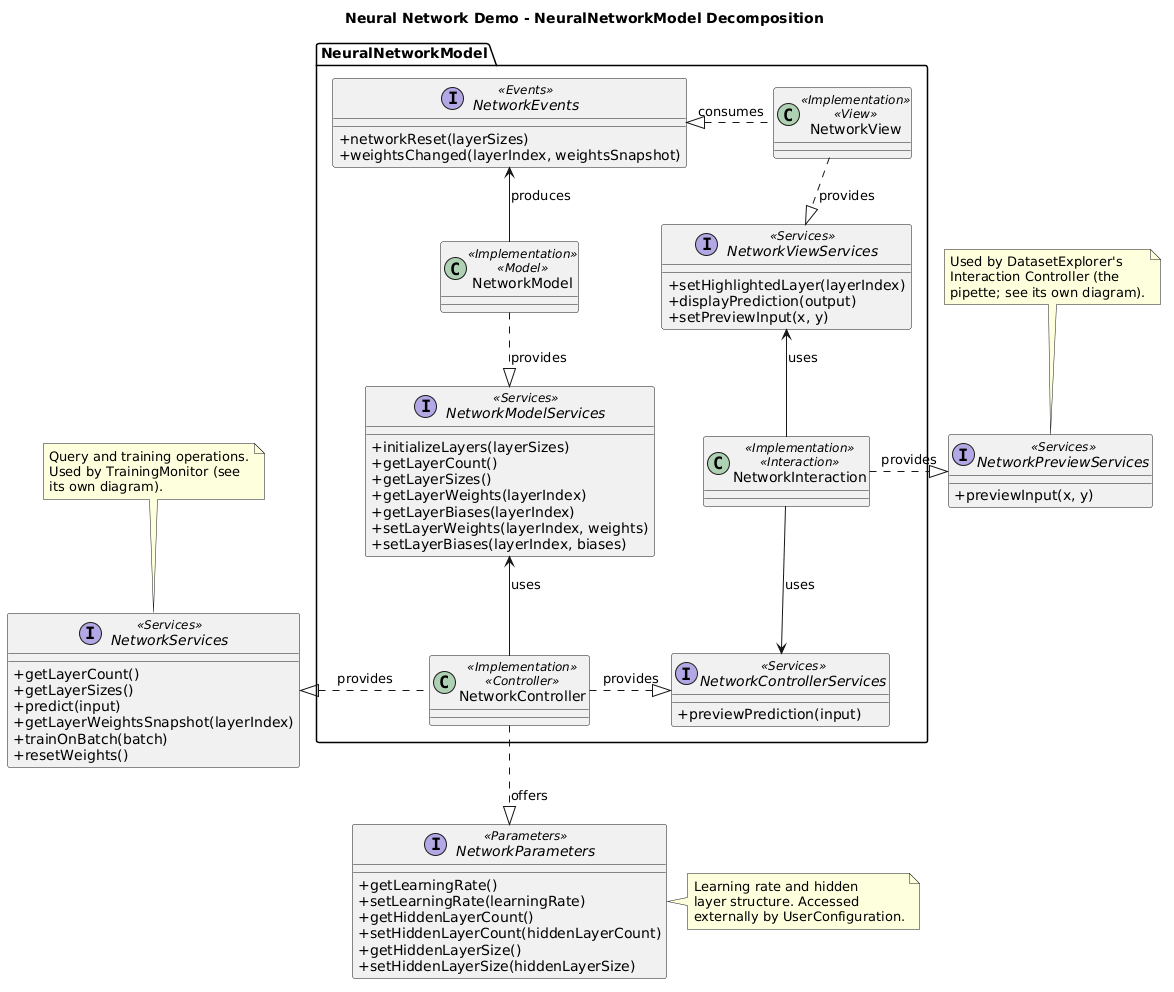

NeuralNetworkModel Decomposition

Owns every layer and weight as a single MVIC - not one component per layer. It exposes three separate interfaces for three separate audiences: NetworkServices for TrainingMonitor to train and evaluate, NetworkParameters for UserConfiguration to tune the learning rate and hidden-layer structure, and NetworkPreviewServices for DatasetExplorer’s pipette. A fourth parameters interface, OptimizerParameters, configures which gradient-descent strategy the Controller uses - but it is offered by an internal @Item, not the Controller itself, and deliberately kept private to this function: no other MVIC needs to reach it, so it does not appear on the Functions Overview diagram at all, the same architectural discipline that keeps DatasetShape out of it.

TrainingMonitor

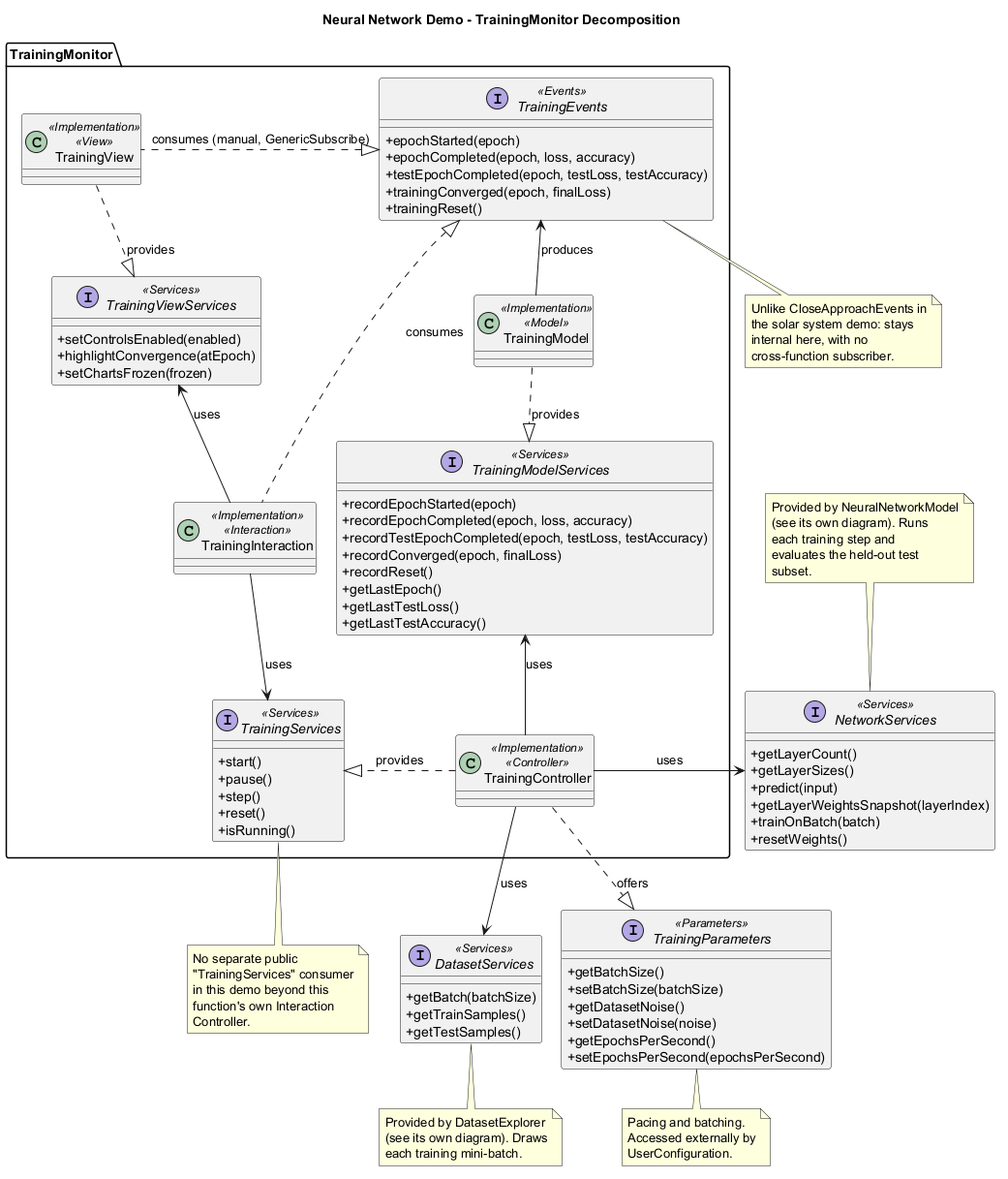

TrainingMonitor Decomposition

Drives training by calling NetworkServices.trainOnBatch(...) batch by batch over the training subset, the same role the solar system demo’s SimulationRunner plays through OrbitalSystemServices. Every epoch also evaluates the same, unchanged network on the held-out test subset through a pure NetworkServices.predict(...) forward pass, so the test-loss curve genuinely reveals overfitting rather than reflecting anything the training loop itself touched. A configurable convergence threshold pauses training automatically once the average loss drops low enough.

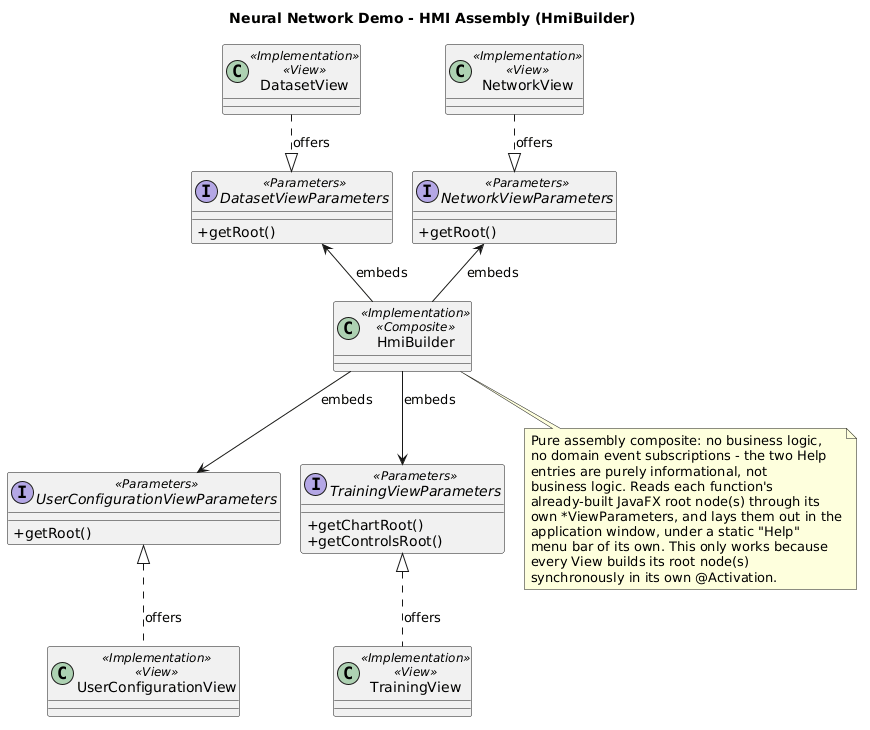

HMI Assembly
